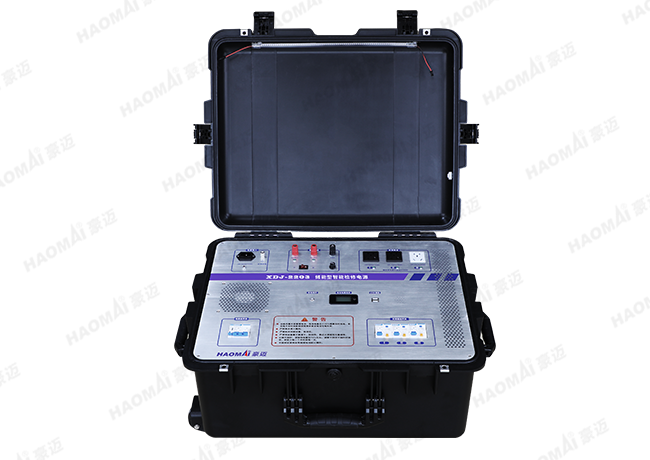

XDJ-2201/2202/2203 portable power pack

——portable power pack for substation maintanance

XDJ-2201/2202/2203 series intelligent maintenance power supply is a kind of mobile intelligent maintenance power supply independently developed according to the requirements of intelligent grid construction site, providing power for line maintenance, substation maintenance and distribution network automation, etc. It can be used as emergency power supply in case of natural disasters.

Inquiry Now

Description
Parameters
Cases
Downloads
Videos

Description

The pull rod box integrated structure design is adopted, which is flexible and convenient to carry;
Built-in large-capacity ternary lithium battery, stable power performance and long service life;
The AC charging mode is adopted to display the battery charging input state and discharging output state in real time, and the power supply intensive management information;
Maintenance power supply input and output are modularized, combined and removable, portable design and function layering and partitioning;
Real-time monitoring and status data (charge and discharge control, fault warning, electric energy condition, geographical location, etc.) statistics of mobile maintenance power supply;
The local terminal and mobile terminal synchronously trace the use condition and historical data of mobile maintenance power supply;
Establish a cluster management system to monitor the geographical location and battery working conditions of each mobile maintenance power supply within the jurisdiction through the background.

Parameters

Models	XDJ2201	XDJ2202	XDJ2203
充电输入接口电压	AC 220VAC+15%，50Hz
交流输出接口电压	AC 220VAC+15%，50Hz
直流输出接口	-	DC 24V/1A或48V/1A	DC 0~260V
电池额定容量	30Ah
电池标称电压	DC 48V
总输出功率	≤1000W
产品尺寸	465280400mm		430240560mm
产品重量	22kg		40kg
