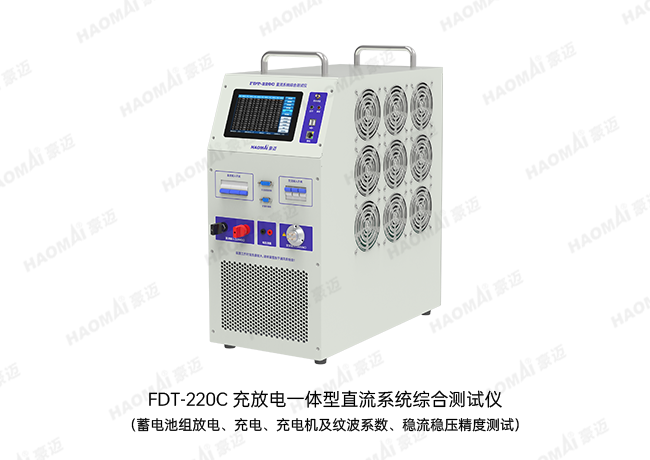

FDT Series DC Power Tester Battery Discharge Tester
——Battery discharge and charger ripple coefficient/voltage and current stabilization accuracy test
The device can be used as a discharging instrument to test the battery capacity, or as an instrument to test the operating characteristics of the DC charging device. It can also be connected to the wireless monitoring system of a single battery to monitor the discharge curve of each battery.
Inquiry Now: sales@haomai.net
- Description
- Parameters
- Cases
- Downloads
- Videos
Description
- Charger characteristic test (ripple coefficient/voltage regulation accuracy/current regulation accuracy)
- For 220V/110V/48V battery pack discharge test
- Battery pack charging monitoring, test the charging curve of the whole battery and single battery
- With wireless single battery monitoring system, suitable for 2V/6V/1 2V battery
- With three-phase electronic automatic AC voltage regulator
- Parallel connection of constant current load module
- Display the voltage and current regulation process and the voltage and current change curve diagram
- Display ripple waveform in oscilloscope mode
- Perfect computer management analysis software
- Reliable multiple fault protection and self-inspection

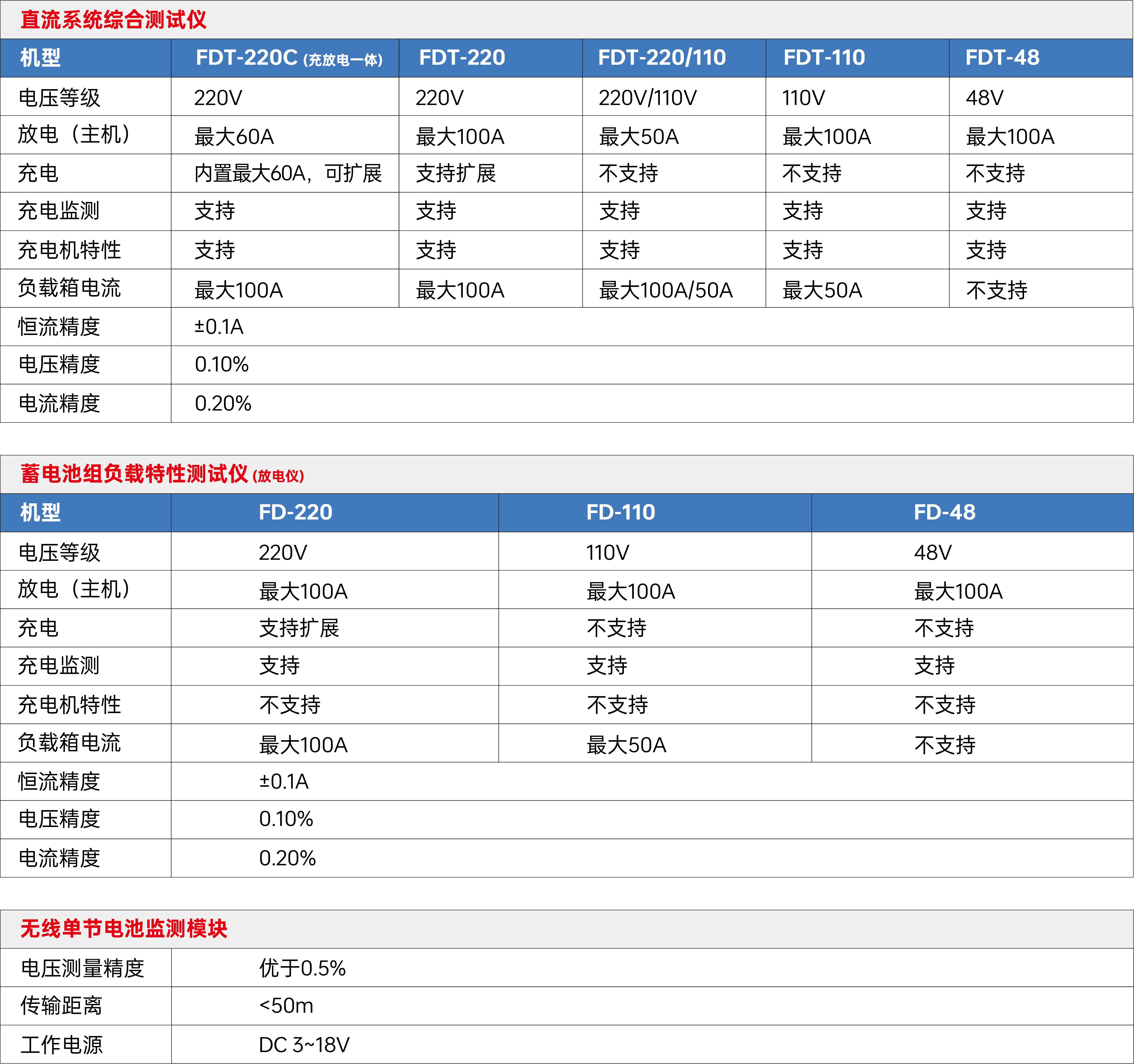

Parameters
Integrated charge and discharge tester

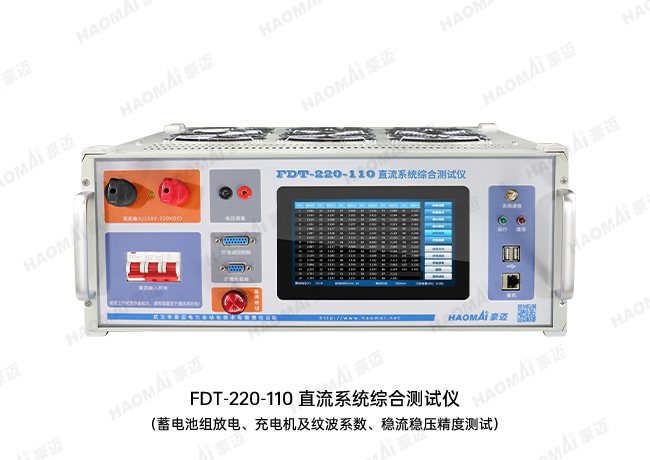

| model | FDT-220C | FDT-220/110 | FDT-220 | FDT-110 | FDT-48 |
| Voltage class | 220V | 220V/110V | 220V | 110V | 48V |
| DISCHARGE Max | 60A | 50A | 100A | 100A | 100A |
| charging Max | 60A | - | - | - | - |
| Charging monitoring | available | available | available | available | available |
| Characteristics of charger | available | available | available | available | available |
| Extra extended load current Max | 100A | 100A/50A | 100A | 50A | 22A |
| Precision of constant current | ±0.1A | ||||
| Voltage accuracy | 0.001 | ||||
| Current accuracy | 0.002 | ||||
DC system capacity analyzer, discharger
| model | FD-220 | FD-110 | FD-48 |
| Battery pack voltage | 220V | 110V | 48V |
| discharge current (Max.) | 100A | 100A | 100A |
| charging | - | - | - |
| Charging monitoring | available | available | available |
| Charger characteristic test | - | - | - |
| Extra extended discharge (Max.) | 100A | 50A | 22A |
| Precision of constant current | ±0.1A | ||
| Voltage accuracy | 0.10% | ||
| Current accuracy | 0.20% |
Battery cell wireless monitoring module
| Voltage measurement accuracy | better than 0.5% |
| transmission distance | <50m |
| Working power supply | DC 3~18V |
