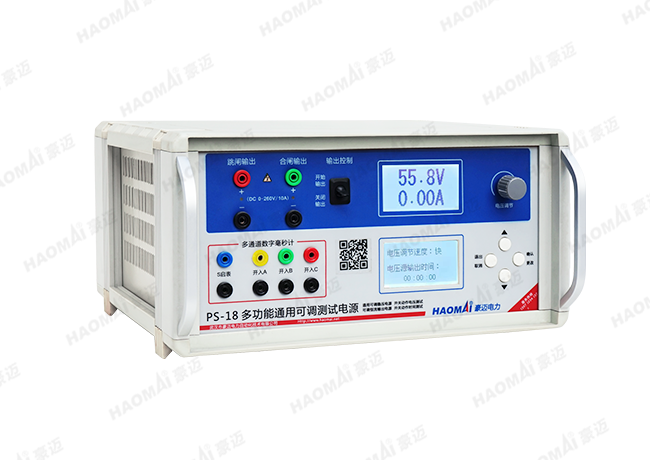

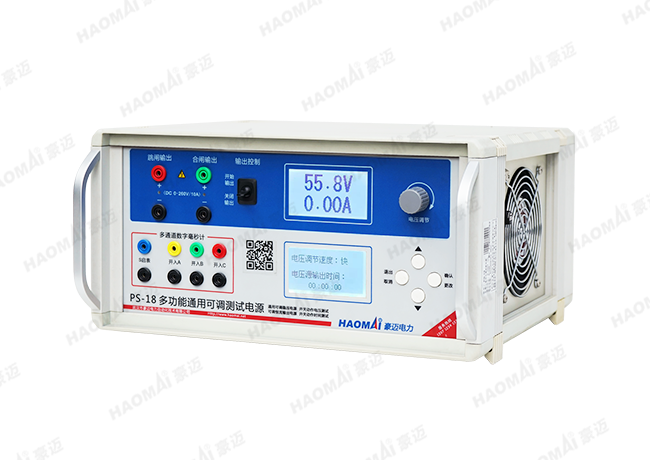

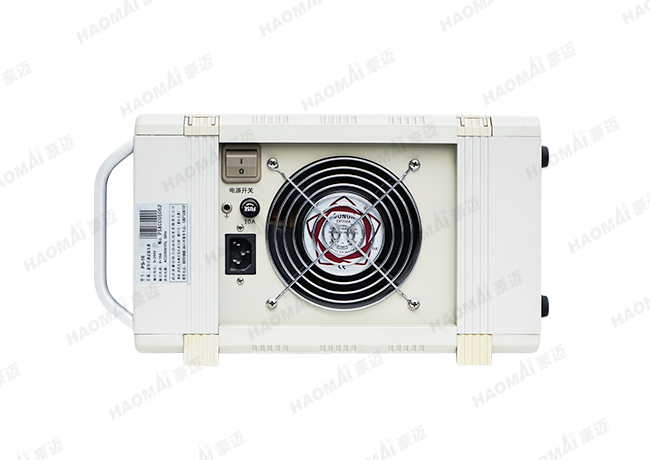

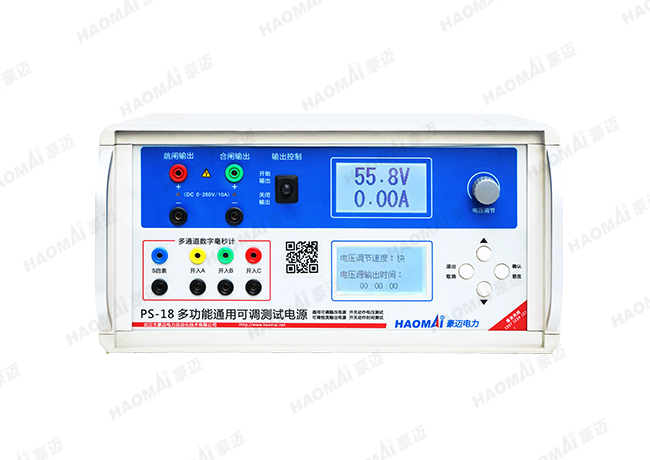

PS-18 Constant voltage and constant current adjustable DC power supply
——constant voltage source, constant current source and switch test power supply
Inquiry Now
- Description
- Parameters
- Cases
- Downloads
- Videos
Description
- It can be used as constant voltage source, constant current source and switch test power supply
- It can be used as portable constant-current charger of 220V/110V battery pack
- Precise and continuous adjustable output, regulated voltage and regulated current at will
- Strong impact load resistance
- Built-in high-precision digital voltmeter display
- Built-in three-channel multi-level digital millisecond meter, LCD display millisecond meter data
- Short circuit self-protection with PWM technology
- With output on/off functions
- Full isolation design, high safety, perfect multiple protection
Parameters
| Input power voltage | AC 220V±20% |
| Input voltage frequency | 47~63Hz |
| Power supply efficiency | ≥85% |
| output voltage | DC 0V~260V |
| Output current | longterm:10A ,shortterm:30A |
| constant voltage output | DC 0~260V |
| constant current output | DC 0.5~10A |
| Maximum output | 2500W |
| Voltage Output Accuracy | ≤0.5% |
| output current accuracy | ≤0.5% |
| Ripple factor | ≤1% |
| Time measuring | 0~99999999s |
| Time measurement accuracy | 1ms |
| ambient temperature | -10~45℃ |
| relative humidity | ＜90%RH |
| weight | 7kg |
