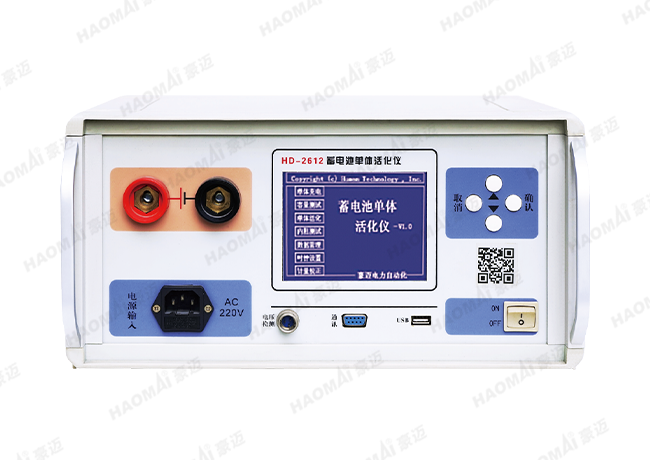

HD-2612 Battery cell activator
Activation of failed lead-acid batteries
Inquiry Now: sales@haomai.net
- Description
- Parameters
- Cases
- Downloads
- Videos
Description
- Activating limited degradation batteries through high current cycling charging and discharging
- Capable of charging, discharging, and activating individual batteries of 2V, 6V, and 12V
- Three operating modes: discharge mode, charging mode, and activation mode
- Equipped with activation optimization setting function, high activation efficiency
- After each round of activation, the internal resistance of the activated battery can be measured for comparison
- Real time monitoring of charging and discharging voltage, current, time, dv/dt curve
- Provide free management and analysis software

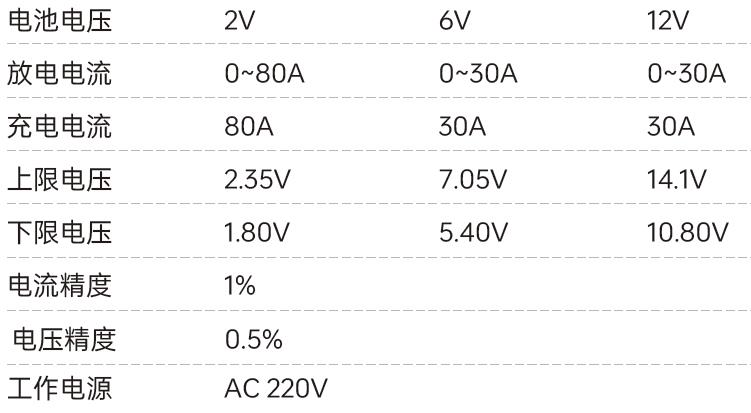

Parameters
| Battery voltage | 2V | 6V | 12V |
| discharge current | 0~80A | 0~30A | 0~30A |
| Charging current | 80A | 30A | 30A |
| Upper limit voltage | 2.35V | 7.05V | 14.1V |
| Lower limit voltage | 1.80V | 5.40V | 10.80V |
| Current accuracy | 1% | ||
| Voltage accuracy | 1% | ||
| Power Supply | AC 220V | ||
